My PCB design has all resistors defined as Polarized (which is incorrect). How do I change the Component Polarity of selected components to Non-Polar?

Using the Smart Select Filter allows you to quickly select all Resistors, and then change the polarity to Non-Polar.

1. Go to menu:  Edit | Selection Filter...   Here's more information about the Smart Selection filter, https://support.numericalinnovations.com/support/discussions/topics/14000019452
2. The Smart Selection Filter accepts Wildcard.  In the Components section enter: R*      (Selects all components Ref designators starting with R)
3. Press button: Select Objects...  (this allows all components starting with R to be selected).
4. Press OK. (To close the dialog)

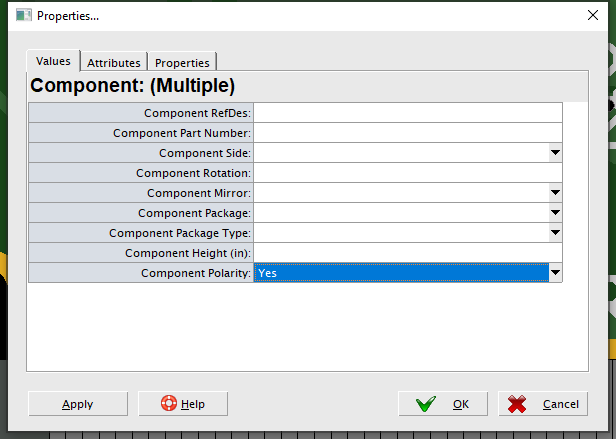

5. Edit Properties of all selected components (menu:  Edit | Properties...)
6. Change the Component Polar section to:  YES
7. Press OK.  All the selected components polarity will be defined as non-polarized.

https://numericalsoftware-update.s3.us-east-1.amazonaws.com/tutorials/2024-12-26_13-40-26_editpolarity.mp4
