We're trying to export the drills on our tgz files as flashes but after several combinations we can't get best recipe to obtain the best results, in the past we used a different sw (gerbtool) to get this result, the final purpose is print transparency fil

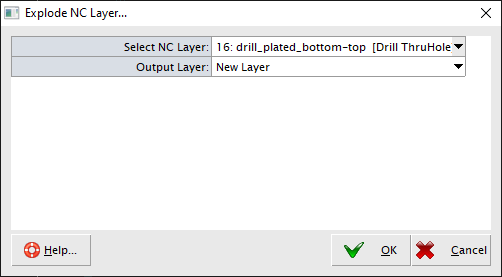

You can convert any NC Drill or Rout layer to simple objects like flashes and traces using the command menu: Fabrication > Generate NC Layers > Explode NC Layer...
Here's a quick tutorial demonstrating Explode NC Layer:
Thanks for your question.
https://numericalsoftware-update.s3.us-east-1.amazonaws.com/tutorials/2025-05-13_22-53-36-nc-togerber.mp4
