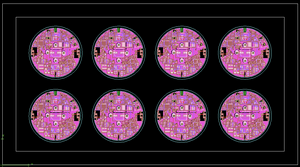

I succes to panelize my PCB, in panel setup i have add my dimensions, fiducial, tooling hole, I have synchronize my layers and I have finish my panel but like you can see below in my panel, I have no fiducial, no tooling hole and no copper filled panel
Finish Panel: The rails and other features are defined in the Panel setup, https://support.numericalinnovations.com/support/discussions/topics/14000018621
Here's a few other links which may help,
