How can I display Ghost Parts (a component without PN) in my Assembly drawings?

You may include Ghost parts in your assembly drawing (i.e components without PN are essentially  grayed out).

Note:  FAB 3000 allows you to determine how to process Components without part numbers.  The default is: Do Not Install (IGNORE)

1. Go to menu:  Assembly >  Assembly Documents (PDF)...

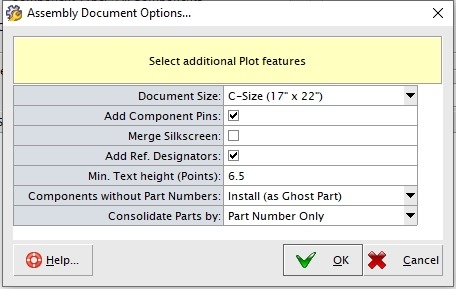

2. Press button Document Options...
3. Find Components without Part Numbers, and select option:  Install (as Ghost Part)
4. Press OK.

Now when exporting your assembly documents any Ghost Parts will be grayed out.

Optional: Ghost Part Color

You may assign the Ghost Part Color, by performing the following:

1. Press button Step Colors.
2. Assign the first color item, which is the Ghost Part Color.
3. Press OK, and any Ghost parts will use this color.
